Product Description

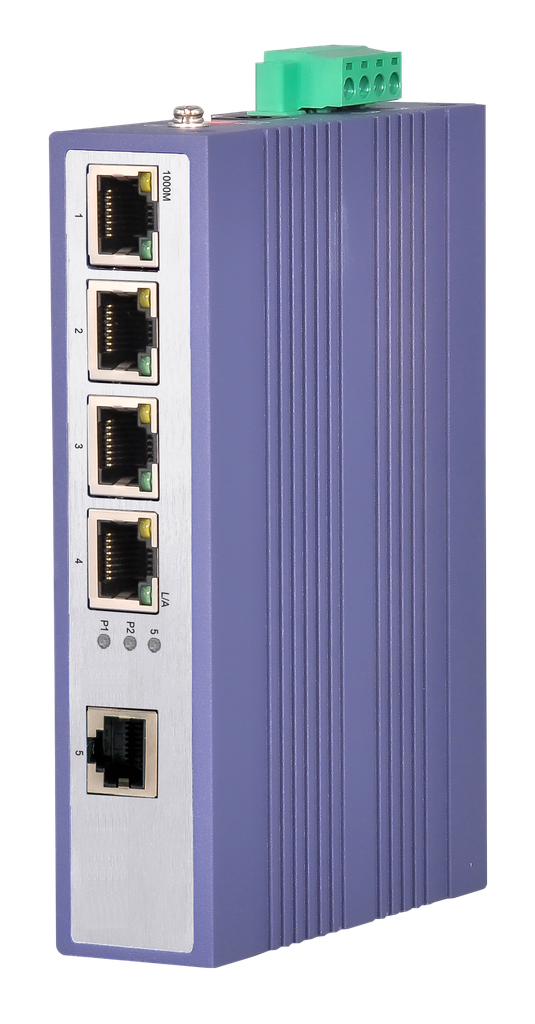

ILS6000-5T is a converged integrated industrial Ethernet switch independently developed by our company. This product is mainly developed for the application of point-to-point networks, star networks, tree networks, and chain networks in the industrial field. Supports 1*10/100Base TX uplink port and 4*10/100Base TX downlink ports. Its high-performance switching engine, with an IP40 protection level shell, fanless design and efficient wavy aluminum alloy shell heat dissipation surface, power input terminal overcurrent, overvoltage and EMC protection, and RJ45 port excellent EMC protection performance make the series products adaptable to harsh and dangerous industrial environments. Provide reliable and convenient solutions for users' Ethernet device networking.
Specifications
4*10/100M RJ45 |
- | ||
Switching Capacity 1 Gbps | Standards and Protocols | ||
Forwarding Rate 0.74 MPPS | Product size(W x D x H) 115mm x 70mm x 30mm | ||
Forwarding mode Store and forward | Product weight 0.35Kg | ||
MAC Address 2K | Installation DIN rail installation | ||
Input voltage DC 9~52V (dual power redundant backup) | Operating temperature -40 ~ 75 ° C | ||
Max. Power Consumption 6W | Storage Temperature -40 ~ 85 ° C | ||
Enclosure IP40 | Surge Protection 6KV | ||
ESD Protection 8KV~15KV | MTBF 10000H |
Specifications
8*10/100M RJ45 |
- | ||
Switching Capacity 1.6Gbps | Standards and Protocols | ||
Forwarding Rate 1.19mpps | Product size(W x D x H) 100mm x 84mm x 44mm | ||
Forwarding mode Store and forward | Product weight 0.4Kg | ||
MAC Address 2K | Installation DIN rail installation | ||
Input voltage DC 9~52V (dual power redundant backup) | Operating temperature -40 ~ 75 ° C | ||
Max. Power Consumption 3W | Storage Temperature -40 ~ 85 ° C | ||
Enclosure IP40 | Surge Protection 6KV | ||
ESD Protection 8KV~15KV | MTBF 100000H |
