Product Description

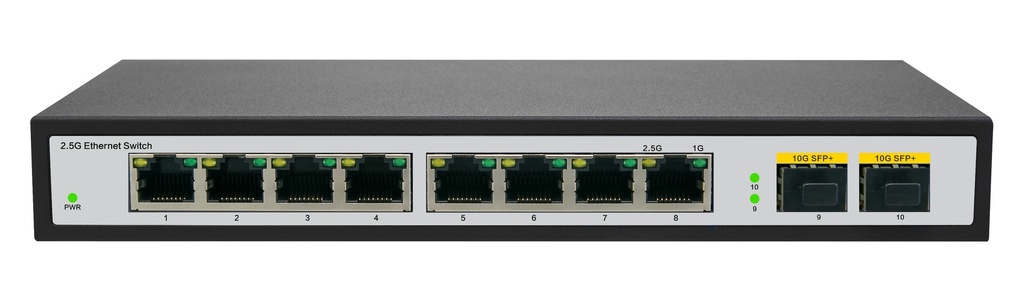

LS8H2X is a 10-Gigabit uplink unmanaged Ethernet switch independently developed by Acorid. It provides 8 * 2.5G RJ45 ports and 2 *10G SFP+ optical ports. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions.This device is plug-and-play, requiring no configuration, and is simple and convenient to use. It meets the needs of high-speed internet access and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Interface 8*10/100/1000M RJ45 |
2*10G SFP+ | ||
Switching Capacity
|
IEEE802.3ab 1000 BASE-T IEEE802.3ab 2500 BASE-T IEEE 802.3z 1000 BASE-LX IEEE802.3ae 10G Base IEEE802.3x Flow Control IEEE802.3az EEE | ||
Forwarding Rate 59.52Mpps | Product size（W x D x H）
| ||
Forwarding mode Store-and-Forward | Product weight | ||
MAC Address 4k | Installation desktop | ||
Power Supply
| Operating temperature 0℃～45℃ | ||
Max. Power Consumption 8W | Storage temperature - 40℃～70℃ |
Product performance
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Product reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● 0~45℃ working temperature improves product stability in a wide temperature environment
easy to use
● Plug and play, no need to configure, simple and convenient
● Users can use the power indicator (Power), port status indicator (Link/Act)
