Product Description

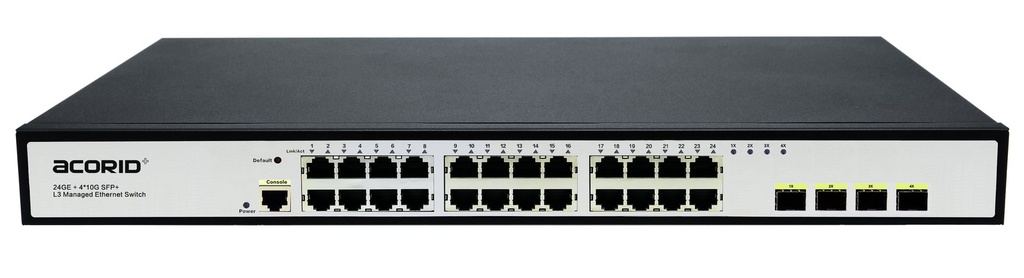

The LS6100G-24T-4X-L3M 10-Gigabit uplink 24-port Gigabit managed switch is an aggregation/core switch independently developed by ACORID. It adopts a new generation of high-performance hardware and software platform to provide flexible full Gigabit access and Cost-effective 10 Gigabit uplink ports, support three-layer routing protocol, complete security protection mechanism, complete ACL/QoS strategy and rich VLAN functions, easy to manage and maintain, suitable for the core or aggregation layer of medium and large networks such as enterprises and campuses .
Specifications
24*10/100/1000M RJ45 | Main chip RTL9301 | |
Uplink ports 4× 10G SFP+ |
512MB | |
Transmission Mode Store and Forward | Flash Memory 32MB | |
Console port 1*RJ45 | Switching Capacity 128Gbps | |
Power Consumption 60W | Forwarding Rate 95.23Mpps | |
Input voltage AC 100-240V 50/60Hz | Packet Buffer 12Mbit | |
Surge Protection 6kv | Jumbo Frame 12k | |
Product size（W x D x H） 440mm*220mm*44mm | MAC Address 16K | |
Installation Rack Mounting | IP Routers 32 static routes | |
Product weight 2.6Kg | Number of VLANs 4K | |
Operating temperature 0°C - 45°C | Storage temperature - 40℃～70℃ |
