Product Description

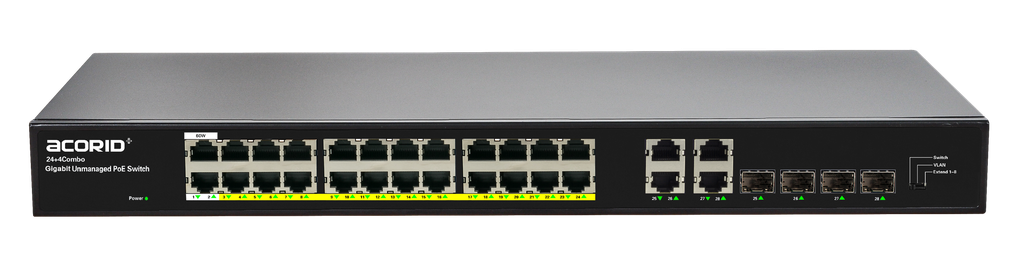

LS6100G-24P4C is a 24-port 100M PoE switch independently developed by ACORID, providing 24*10/100/1000M adaptive RJ45 ports, 4 Gigabit RJ45 + 4 Gigabit SFP (Combo). Each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding. Both the downstream port support the POE power supply function of the IEEE802.3AF / AT standard, which can automatically detect the identifier of standard power-on, and power it through the network cable. Preventive dosage overload, device plug and play, no need to configure, easy to use. It can be used in security monitoring, hotel, campus, plant dormitory and wireless covering small and medium enterprise network access layers.
Specifications
Downlink Ports 24*1G RJ45 | Uplink ports 4*1G RJ45+4*1G SFP (Combo) |
Total Power Supply 400W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 3.3Tbps |
Packet Forwarding Rate 128Mpps | MAC Address 8K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 440mm ×220mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
● Extend mode: After opening, 1-8 ports becomes 10M, and the transmission distance can reach 250m.
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)
