Product Description

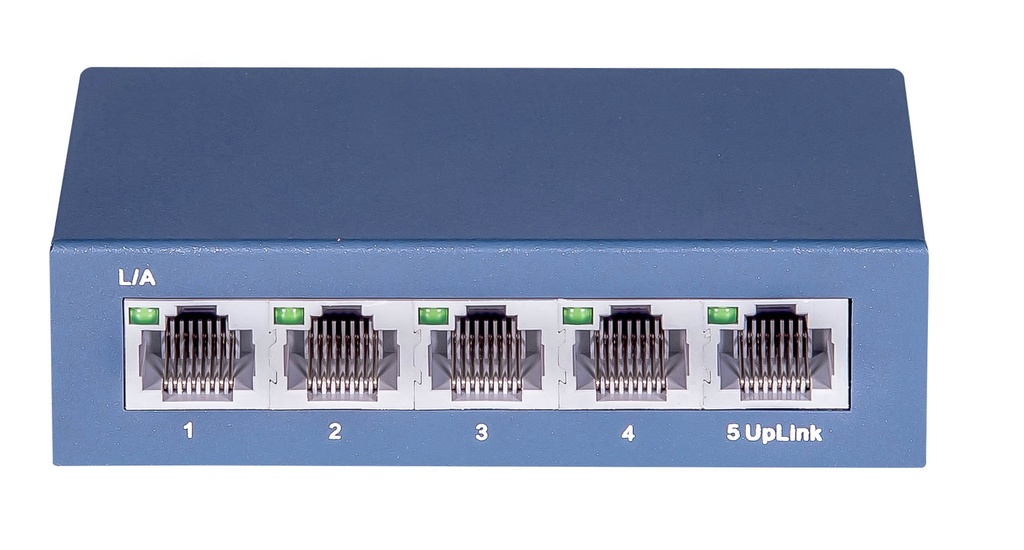

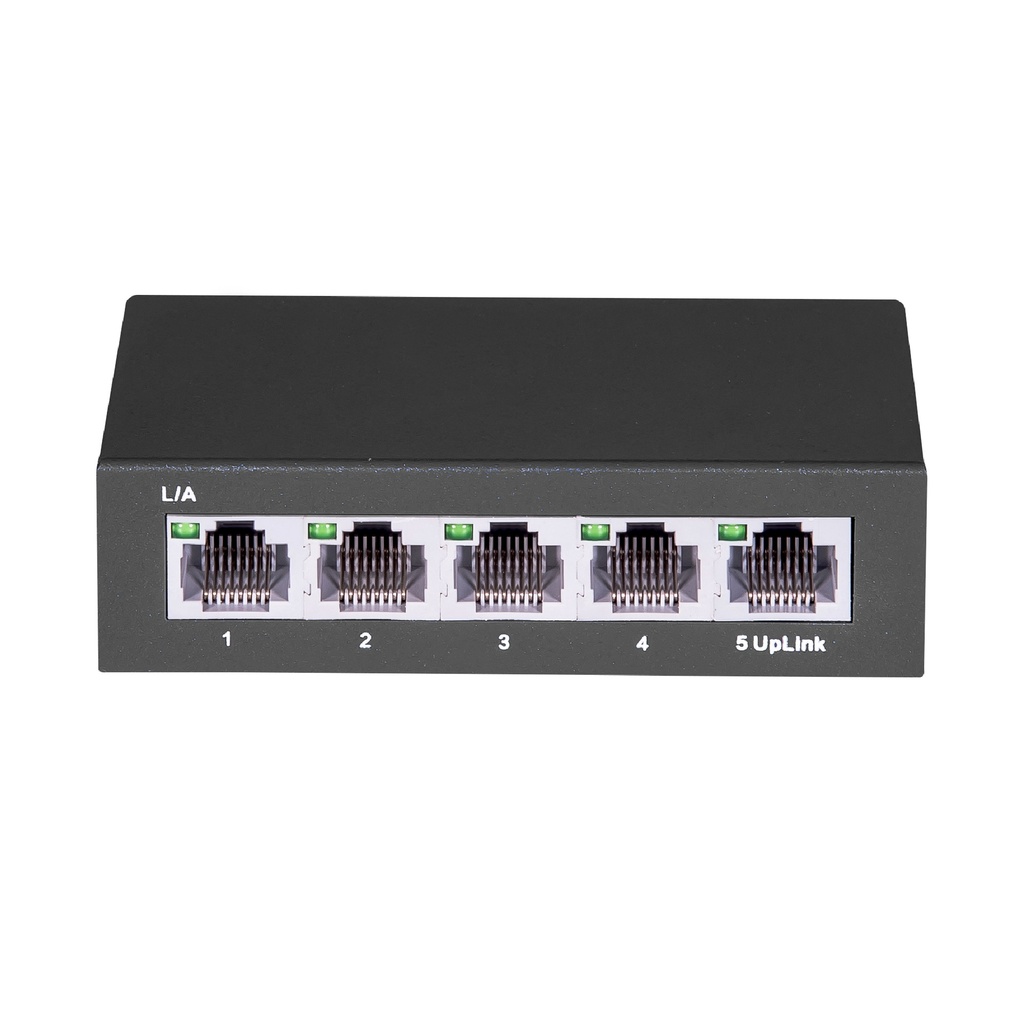

LS5T is a unmanaged Ethernet switch independently developed by ACORID, which provides 5* 10/100M adaptive RJ45 ports. Each RJ45 port supports MDI / MDIX auto flip-flop and wire speed forwarding.
It can quickly adapt to various complex environments. The device is plug and play, no need to configure, simple and easy to use. It can be used for security monitoring, access layer in hotels, campuses, factory dormitories and wireless coverage in small and medium-sized enterprises.
Specifications
Interface 5*10/100M RJ45 |
- | ||
Switching Capacity
|
IEEE802.3ab 1000 BASE-T IEEE802.3x Flow Control IEEE802.3az EEE | ||
Forwarding Rate 0.744Mpps | Product size（W x D x H）
| ||
Forwarding mode Store-and-Forward | Product weight | ||
MAC Address 2k | Installation desktop | ||
Power Supply | Operating temperature 0℃～45℃ | ||
Max. Power Consumption 5W | Storage temperature - 40℃～70℃ |
Product performance
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Product reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● 0~45℃ working temperature improves product stability in a wide temperature environment
easy to use
● Plug and play, no need to configure, simple and convenient
● Users can use the power indicator (Power), port status indicator (Link/Act)
