Product Description

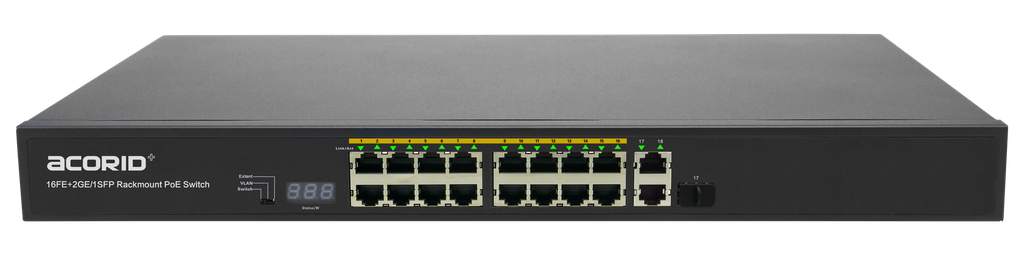

LS5319PGF is a 16-port 100-poe switch that is independently developed by ACORID, providing 16*10 / 100M adaptive RJ45 ports, 2 Gigabit RJ45 ports +1 Gigabit SFP fiber ports. Each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding. Both the downstream port support the POE power supply function of the IEEE802.3AF / AT standard, which can automatically detect the identifier of standard power-on, and power it through the network cable. Preventive dosage overload, device plug and play, no need to configure, easy to use. It can be used in security monitoring, hotel, campus, plant dormitory and wireless covering small and medium enterprise network access layers
Specifications
PoE ports 16*10/100M RJ45 | Switching Capacity 9.2Gbps |
Uplink ports 2*1000M RJ45 +1*1000M SFP | Forwarding Rate 6.84Mpps |
PoE Standard Protocol IEEE 802.3af,IEEE 802.3at | MAC Address 8K |
Power Consumption 250w | Surge Protection 4KV |
PoE Budget 235w | Fans - |
Max. PoE Wattage per Port 30W | Product weight |
Input voltage AC 100-240V 50/60Hz | Product size（W x D x H） 440mm ×220mm × 44mm |
Output voltage 52V | Operating temperature 0℃～45℃ |
POE Pin 1/2/4/5(+),3/6/7/8(-) | Storage temperature - 40℃～70℃ |
Installation Desktop & rack installation |
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
● Support IEEE 802.3af/at PoE power supply standard
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
● Automatic detection and identification of standard PoE power receiving equipment, intelligent power supply, will not burn non-standard PoE power receiving equipment or ordinary equipment
● The PoE port supports a priority mechanism, when the remaining power is insufficient, the power supply of the high-priority port is guaranteed first
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act), and digital tube power display
