Product Description

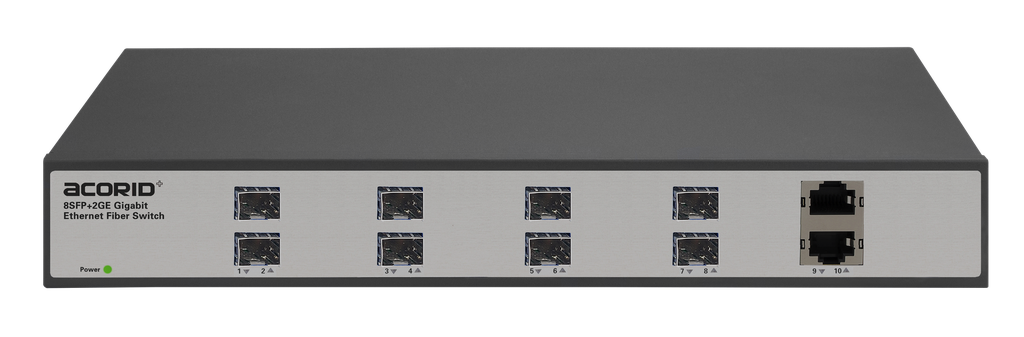

LS2G8F is an independently developed full Gigabit unmanaged fiber optic switch, it provides two 10/100/1000M adaptive RJ45 ports, eight Gigabit SFP optical ports, each RJ45 port supports MDI / MDIX auto-reversal and wire-speed forwarding.
The device is plug and play, no need to configure, easy to use, is the best choice for hotels, campuses, factories, dormitories, small and medium-sized enterprises security monitoring wireless coverage.
Specifications
Interface 2*10/100/1000M RJ45 |
8*1000M SFP | ||
Switching Capacity
|
IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3x Flow Control IEEE802.3az EEE | ||
Forwarding Rate 14.88Mpps | Product size（W x D x H）
| ||
Forwarding mode Store-and-Forward | Product weight | ||
MAC Address 8k | Installation
Desktop & Rack installation
| ||
Power Supply
| Operating temperature 0℃～45℃ | ||
Max. Power Consumption 5W | Storage temperature - 40℃～70℃ |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Product reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Ease of use
● Plug and play, no configuration, simple and convenient.
● The user can easily display the power through the power indicator (power), port status indicator (link / act) and nixie tube power Understand the working state of the equipment.
