Product Description

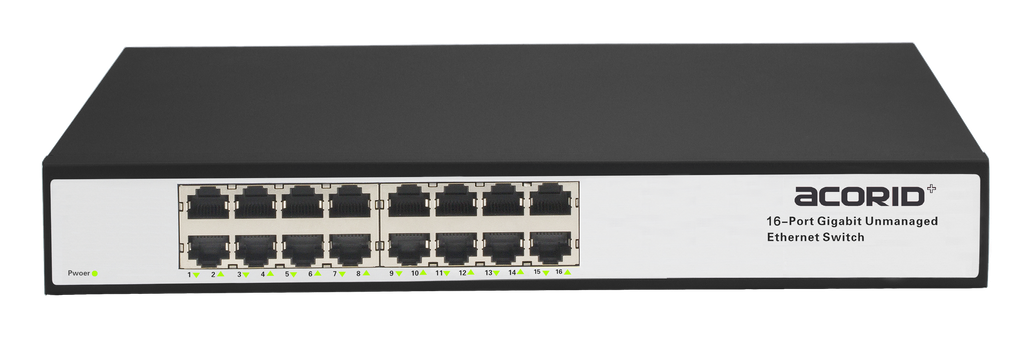

LS16GD is a full Gigabit Division Ethernet switch developed independently, which provides 16*10/100 / 1000M adaptive RJ45 ports. Each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding.
Can quickly adapt to a variety of complex environments. The device is plug-and-play, no configuration, easy to use. It can be used for security surveillance, hotel, campus, factory dormitory access layer, and wireless coverage of small and medium-sized enterprises.
Specifications
Interface 16*10/100/1000M RJ45 |
- | ||
Switching Capacity
|
IEEE802.3ab 1000 BASE-T IEEE802.3x Flow Control IEEE802.3az EEE | ||
Forwarding Rate 23.8Mpps | Product size（W x D x H）
| ||
Forwarding mode Store-and-Forward | Product weight | ||
MAC Address 8k | Installation
Desktop & Rack installation
| ||
Power Supply
| Operating temperature 0℃～45℃ | ||
Max. Power Consumption 13W | Storage temperature - 40℃～70℃ |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Product reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Ease of use
● Plug and play, no configuration, simple and convenient.
● The user can easily display the power through the power indicator (power), port status indicator (link / act) and nixie tube power Understand the working state of the equipment.
