Product Description

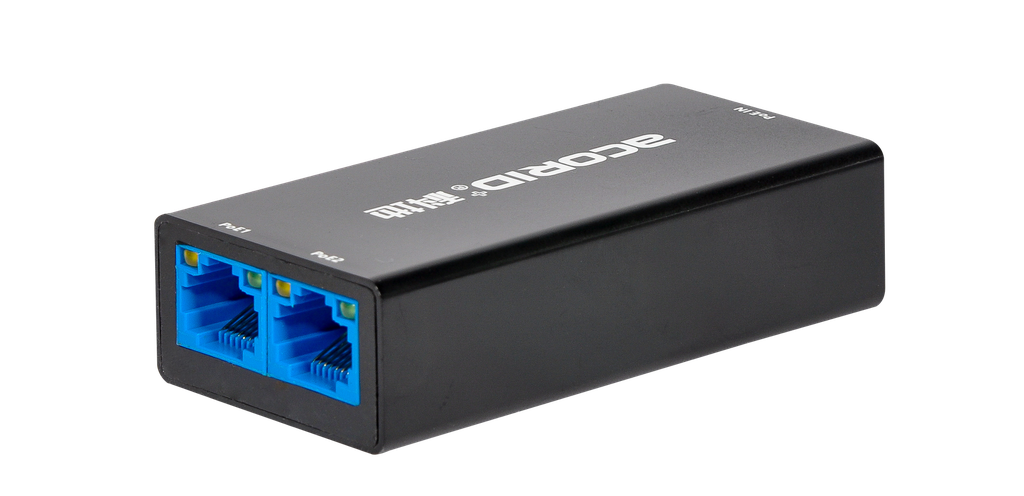

LS103 is a self-developed 100Gigabit one-in-two-out PoE cascade treasure, providing three 10/100M adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX auto-flip and wire speed forwarding function. The PoE1 PoE2 port is a PoE power supply port, which supports IEEE802.3af/at standard PoE power supply; the PoE IN port is a powered port, which can be powered directly by the PoE switch through the network cable. LS103 supports 3-5 levels of cascading when power is tolerated, which can effectively save wiring cost and reduce construction difficulty.
Specifications
Downlink Ports 2*10/100M RJ45 | Uplink ports 1*100M RJ45 |
Total Power Supply 30W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 Full-duplex flow controll | Backplane Bandwidth 0.6Gbps |
Packet Forwarding Rate 0.45Mpps | MAC Address 2K |
Port lightning protection | Standard Protocol IEEE802.3i 10 BASE-T |
Power Supply DC 44-57V | Size 80mm × 40mm × 21mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
PoE power supply capacity
● PoE IN can receive up to 30W of power
● Maximum output power of single port is less than 30W
● Automatic detection and identification of standard PoE powered devices, intelligent power supply, no burning of non-standard PoE powered devices or common devices
Product Reliability
● Low power consumption design of host and natural heat dissipation to ensure stable operation of the product.
● High redundancy design to provide long-term stable PoE power output.
● 0~45℃ working temperature to enhance the stability of the product in wide temperature environment
Easy to operate
● Plug-and-play, no configuration required, simple and convenient
● Users can easily understand the working status of the device through PoE (PoE indicator); Link/Act (link/activity indicator)
