Product Description

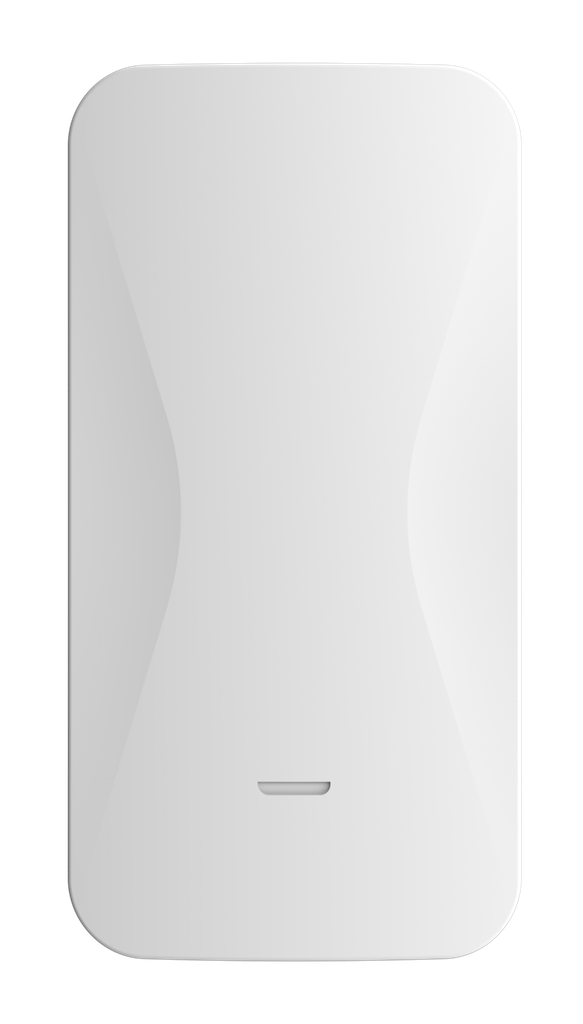

KD-C120K is a high-performance enterprise-grade outdoor network bridge operating in the 2.4G frequency band and supporting 802.11N technology. It eliminates the need for computer configuration, facilitating easy pairing of point-to-point and point-to-multipoint devices. Featuring a 100M network interface and 2.4G 802.11N MIMO technology, its wireless processing speed can reach up to 300Mbps. The power supply is flexible, supporting both 24V PoE cable power supply and 12V 1A DC local power supply, with a cable power supply distance of up to 50-70 meters (depending on the cable material). Designed with an outdoor IP65 windproof, rainproof, dustproof, and sunscreen protective shell, it easily adapts to various harsh outdoor environments. Equipped with an 8 dBi dual-excitation plate antenna, installation is simple and quick. Characterized by high performance, high gain, high receiving sensitivity, and high bandwidth, it significantly enhances wireless transmission performance and stability, making it primarily suitable for elevator monitoring and other similar applications.
Specifications
Model | KD-C120K |
CPU | MT7628DAN |
Flash | 8M |
DDR2 | 64M |
2.4G operating frequency band | 2.412 GHz ~ 2.484GHz |
2.4G WIFI transmission protocol | 802.11 b / g / n |
Enclosure
| IP65 |
Maximum speed | 300Mbps |
Interface (WAN) | 1*10/100M adaptive WAN port, supporting POE power supply |
Interface (LAN) | 1*10/100M adaptive LAN port, |
power supply | PoE 24V 0.5A，DC 12V 1A |
Max Power Consumption | 5W |
Product dimensions | 168mm*86mm*39mm |
weight | 0.5kg |
working environment | Normal operating temperature: -20°C to 55°C; storage temperature: -40°C to 70°C; humidity: 5% to 95% (non-condensing) |
ESD | Air discharge +/-8K, contact discharge +/-4K |
Surge | Common mode 2K, differential mode 1K |
