Product Description

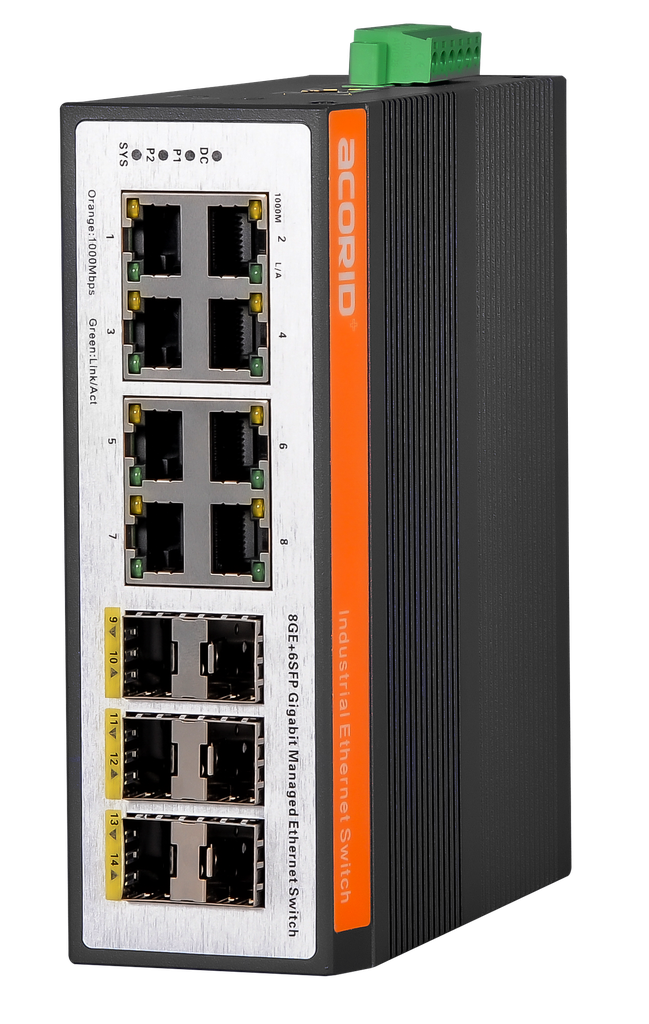

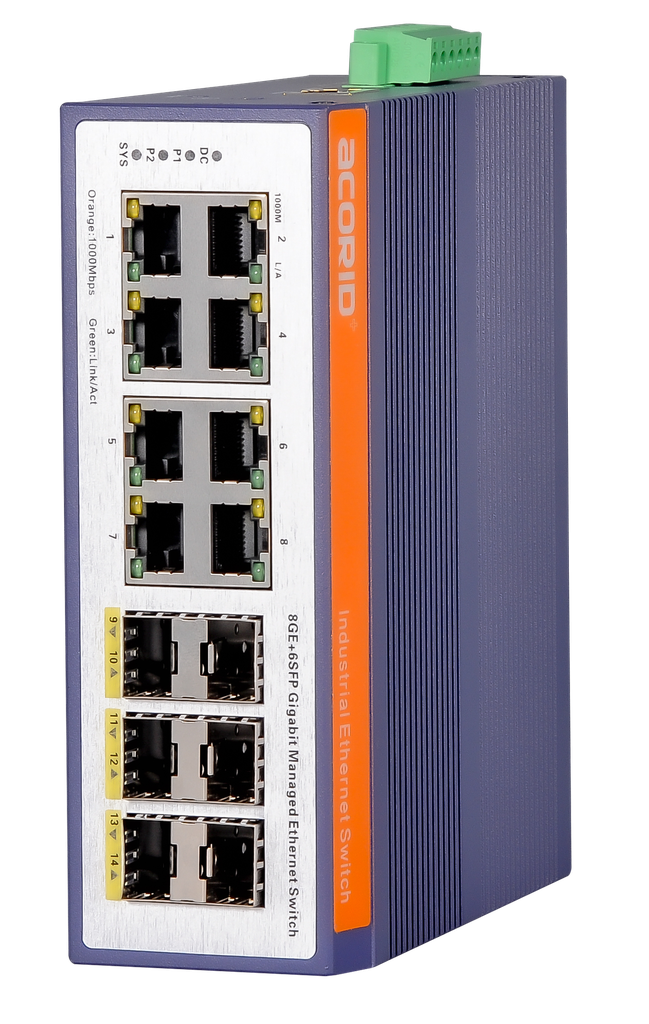

ILS6000G-8T4F-L2M is a 8-port Gigabit managed industrial Ethernet switch, providing 8 Gigabit RJ45 ports, 6 Gigabit SFP slots, the switch adopts fanless heat dissipation circuit design, redundant circuit design, and equipment support EMC industrial grade 4 protection performance; corrugated high-strength aluminum profile shell, IP40 grade, low power consumption design, seismic rail installation, working temperature of -40℃-75℃, can work in harsh environments; ILS6000G-8T6F-L2M It can also support rich network management functions: ERPS, RSTP, VLAN, QoS, SNMPv1/v2c/v3, IEEE802.1X, SSH/SSL, port mirroring, port aggregation and other rich redundancy, switching and security management features, making it smart Reliable solutions for traffic, video surveillance and other harsh industrial environments.
Specifications
Interface 8*10/100/1000M RJ45 | Main chip RTL8382M | |
Uplink ports 6*1000M SFP | DRAM 128MB | |
Console port 1*RJ45 | Flash Memory 32MB | |
Max. Power Consumption 6W | Switching Capacity 28Gbps | |
Input voltage DC 12~24V (6PIN Phoenix terminal), 1*DC interface | Forwarding Rate 20.83Mpps | |
Surge Protection 6KV | Packet Buffer 2Mbit | |
ESD Protection 8KV~15KV | Jumbo Frame 10k | |
IP40 | MAC Address 8K | |
Product size（W x D x H） 153mm * 130mm * 44mm | IP Routers | |
Installation DIN rail installation | Number of VLANs 4K | |
Product weight 0.85Kg | ERPS support | |
Operating temperature - 40℃~75℃ |
Support port alarm | |
Storage temperature -40℃~85℃ | MTBF 100000h |
