Product Description

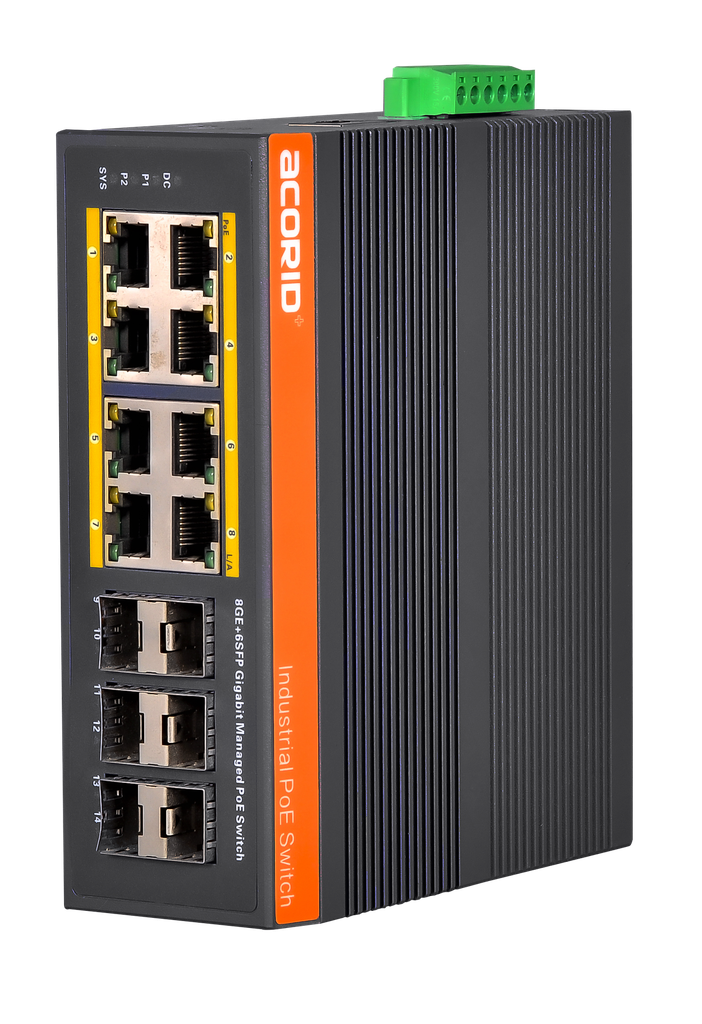

ILS6000G-8P6F-L2M is a Gigabit managed industrial PoE switch that provides 8 Gigabit RJ45 ports and 6 Gigabit SFP slots. The switch adopts fanless heat dissipation circuit design and redundant circuit design, and the equipment supports EMC industry level 6 protection performance; corrugated high-strength aluminum profile shell, IP40 grade, low power consumption design, earthquake-resistant rail installation, -40℃-75℃ It can work in harsh environments; ILS6000G-8P6F-L2M can also support rich network management functions: ERPS, RSTP, VLAN, QoS, SNMPv1/v2c/v3, IEEE802.1X, SSH/SSL, port mirroring, port aggregation, etc. Rich redundancy, switching and safety management features make it a reliable solution for intelligent transportation, video surveillance and other harsh industrial environments
Specifications
Poe Ports 8*10/100/1000M RJ45 | Main chip RTL8380M |
Uplink ports 6*1000M SFP | DRAM 128MB |
Console port 1*RJ45 | Flash Memory 32MB |
PoE Standard Protocol IEEE 802.3af/at | Switching Capacity 28Gbps |
Max. PoE Wattage per Port 30W | Forwarding Rate 20.83Mpps |
Max. Power Consumption 6W | Packet Buffer 2Mbit |
Input voltage DC 48~56V (6PIN Phoenix terminal), 1*DC interface | Jumbo Frame 10k |
ESD Protection 8KV-15KV | MAC Address 8K |
Surge Protection 6KV | IP Routers |
Product size（W x D x H） 153mm * 130mm * 44mm | Number of VLANs 4K |
Product weight 0.85Kg | ERPS support |
Installation DIN rail installation | Operating temperature -40℃~75℃ |
Enclosure IP40 | Storage temperature -40℃~85℃ |
