Product Description

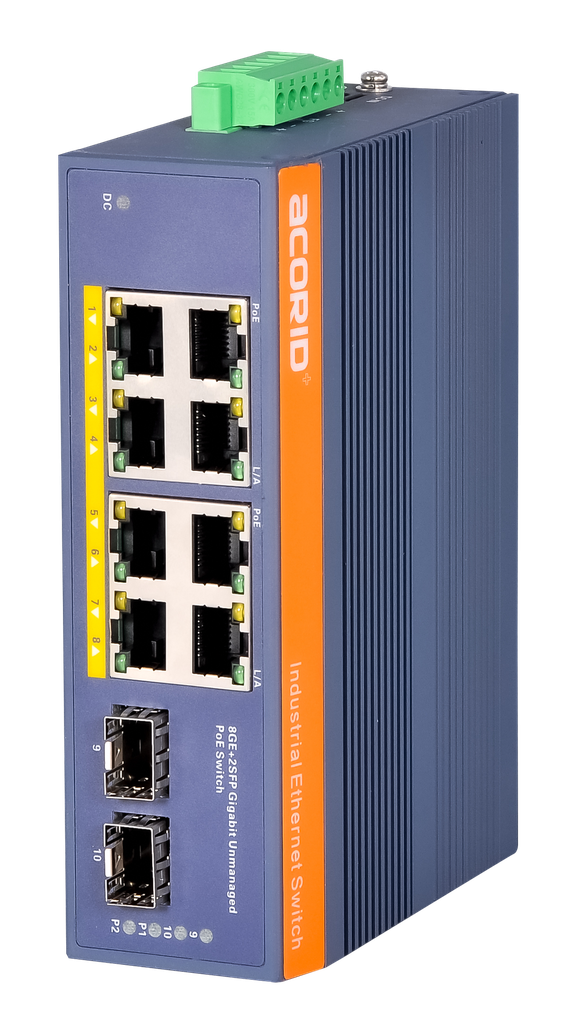

ILS6000G-8P-2F is a Gigabit unmanaged industrial-grade PoE switch that provides 8 Gigabit RJ45 ports and 2 Gigabit SFP slots. The switch adopts fanless heat dissipation circuit design and redundant circuit design, and the equipment supports EMC industry level 4 protection performance; corrugated high-strength aluminum profile shell, IP40 grade, low power consumption design, earthquake-resistant rail installation, -40℃-75℃ Working temperature, can work in harsh environment
Specifications
8*10/100/1000M RJ45 |
2*1000M SFP | ||
Switching Capacity 20Gbps | Standards and Protocols | ||
Forwarding Rate 14.88Mpps | Product size（W x D x H） 145mm x 103mm x 44mm | ||
Forwarding mode Store and forward | Product weight 0.85Kg | ||
MAC Address 8K | Installation DIN rail installation | ||
Input voltage DC 48~56V (6PIN Phoenix terminal), 1*DC interface | Operating temperature -40 ~ 75°C | ||
Max. Power Consumption 6W | Storage temperature -40 ~ 85°C | ||
Enclosure IP40 | Surge Protection 6KV | ||
ESD Protection 8KV~15KV | MTBF 100000H |
