Product Description

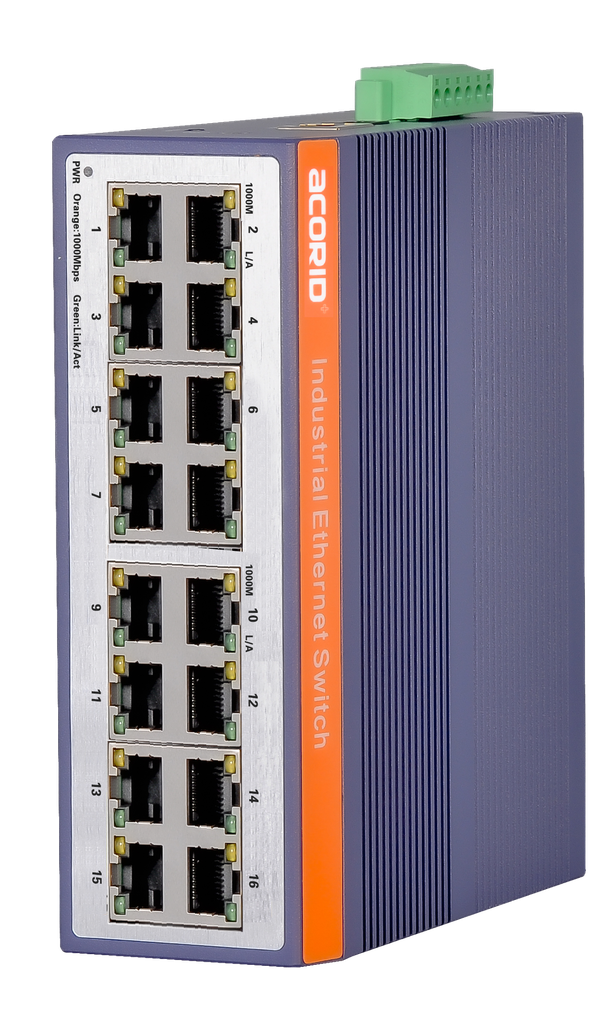

ILS6000G-16T is a 16-port Gigabit unmanaged industrial Ethernet switch, providing 16 Gigabit RJ45 ports. The switch supports EMC industrial level 4 protection performance through fanless cooling circuit design, redundant circuit design, and the device supports EMC industrial level 4 protection performance; corrugated high-strength aluminum profile housing, IP40 rating, low power consumption design, vibration-resistant rail mounting, -40℃-75℃ Working temperature, can work in harsh environment; good EMC electromagnetic compatibility performance, etc., are all necessary conditions to support stable network data transmission.
Specifications
16*10/100/1000M RJ45 |
- | ||
Switching Capacity 32Gbps | Standards and Protocols | ||
Forwarding Rate 23.8Mpps | Product size（W x D x H） 153mm x 130mm x 54mm | ||
Forwarding mode Store and forward | Product weight 0.85Kg | ||
MAC Address 8K | Installation DIN rail installation | ||
Input voltage DC 48~56V (6PIN Phoenix terminal), 1*DC interface | Operating temperature -40 ~ 75°C | ||
Max. Power Consumption 6W | Storage temperature -40 ~ 85°C | ||
Enclosure IP40 | Surge Protection 6KV | ||
ESD Protection 8KV~15KV | MTBF 100000H |
