Product Description

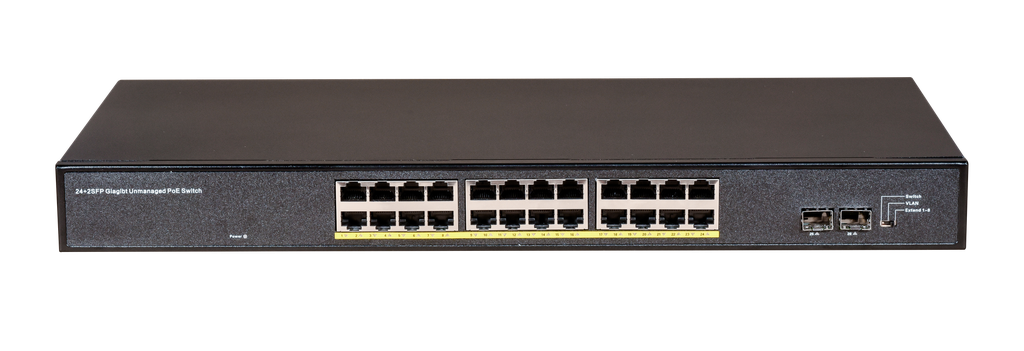

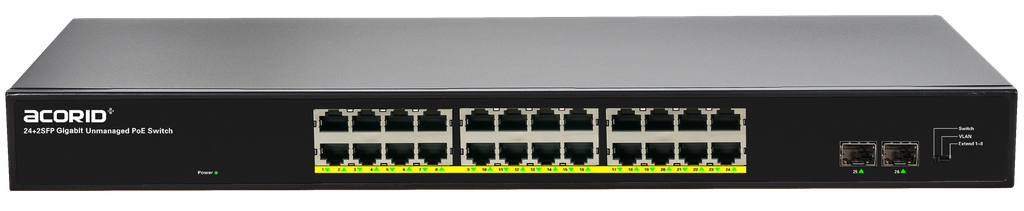

GLS1126PF is a 24 port full Gigabit PoE switch that provides 24 10/100/1000M adaptive RJ45 ports and 2 Gigabit SFP Uplink ports. Each RJ45 port supports MDI/MDIX automatic flipping and line speed forwarding functions. All downstream ports support PoE+power supply, with a single port PoE power of up to 30W. The maximum PoE output power of the entire machine is 250W (400W optional). As a PoE powered device, it can automatically detect and identify power receiving devices that meet the standards, and provide power to them through Ethernet cables.
The device is plug-and-play, no configuration, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
PoE ports 24*10/100/1000M RJ45 | Switching Capacity 52Gbps |
Uplink ports 2*1000M SFP | Forwarding Rate 38.69Mpps |
PoE Standard Protocol IEEE 802.3af,IEEE 802.3at | MAC Address 8K |
Power Consumption 250w/400w | Surge Protection 4KV |
PoE Budget 235w/385w | Fans - |
Max. PoE Wattage per Port 30W | Product weight |
Input voltage AC 100-240V 50/60Hz | Product size（W x D x H） 440mm × 220mm × 44mm |
Output voltage 52V | Operating temperature 0℃～45℃ |
POE Pin 1/2/4/5(+),3/6/7/8(-) | Storage temperature - 40℃～70℃ |
Installation Desktop & rack installation |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating mode
● Provide two swap modes.
● Standard mode: All ports can be freely communicated after turning on. Applicable to ordinary data transmission environments
● VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
● EXTEND mode: After opening, the downstream 1-8 port rate becomes 10m, the transmission distance is up to 250m
PoE Power Supply Capability
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)
