Product Description

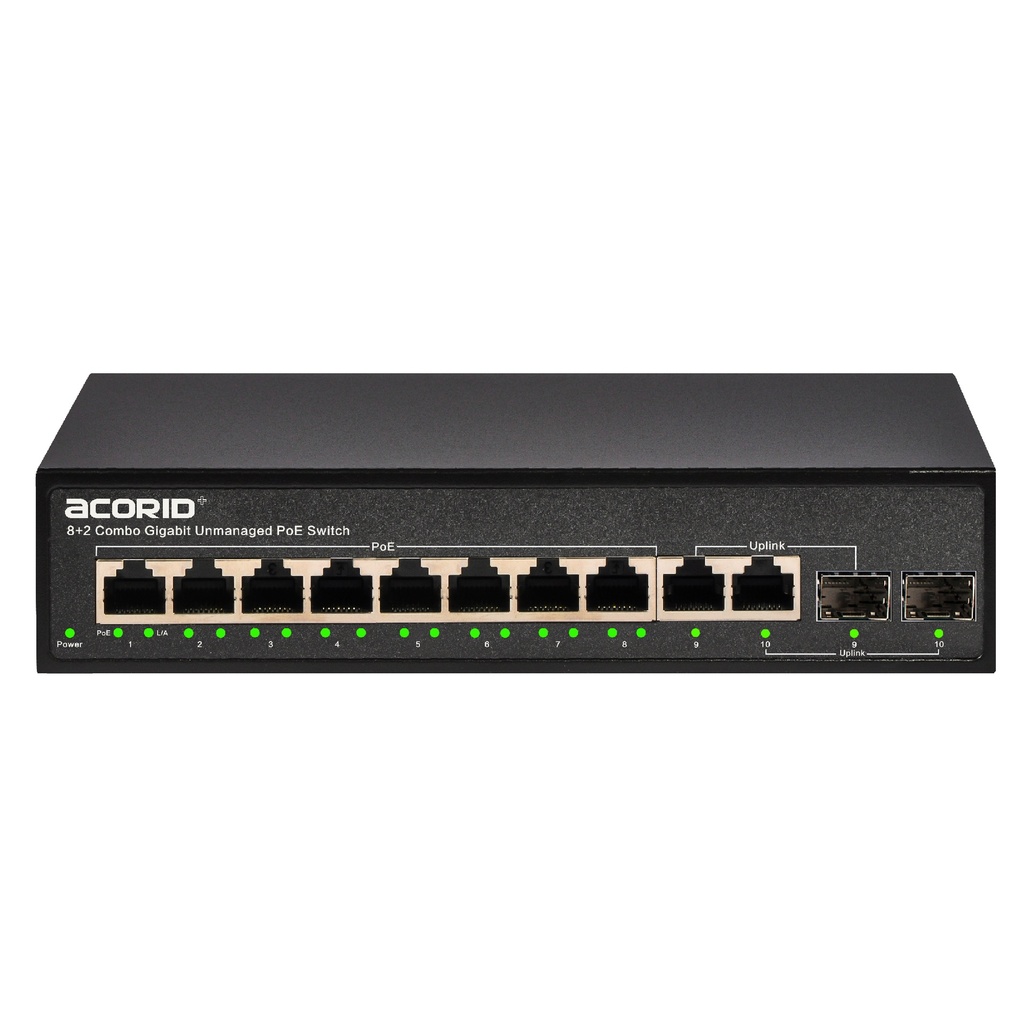

GLS1112PC is a full Gigabit PoE switch independently developed by acorid, providing 8*10/100/1000M adaptive RJ45 ports, and each RJ45 port supports MDI/mdix automatic flip and wire-speed forwarding functions. The downstream port supports the IEEE802.3af/at standard PoE power supply function, which can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
The device is plug-and-play, requires no configuration, and is easy to use. It can be used for wireless coverage at the network access layer of security monitoring, hotels, campuses, dormitories, and small and medium-sized enterprises.
Specifications
PoE ports 8*10/100/1000M RJ45 | Switching Capacity 20Gbps |
Uplink ports 2*1000M RJ45+2*1000M SFP(combo) | Forwarding Rate 14.88Mpps |
PoE Standard Protocol IEEE 802.3af,IEEE 802.3at | MAC Address 4K |
Power Consumption 120w | Surge Protection 4KV |
PoE Budget 114w | Fans - |
Max. PoE Wattage per Port 30W | Product weight |
Input voltage AC 200-240V 50/60Hz | Product size（W x D x H） 200mm ×133mm × 44mm |
Output voltage 52V | Operating temperature 0℃～45℃ |
POE Pin 1/2/4/5(+),3/6/7/8(-) | Storage temperature - 40℃～70℃ |
Installation Desktop & rack installation |
Switching characteristics
● Large buffer design, high definition video does not jam
● Support IEEE 802.3x full duplex flow control and backpressure half duplex flow control
● Each RJ45 port supports MDI / mdix automatic flipping and line speed forwarding functions
PoE power supply characteristics
● Support IEEE 802.3af/at Poe power supply standard
● Single port output power up to 30W
● Automatic detection and identification of standard PoE powered devices, intelligent power supply, will not ● burn non-standard PoE powered devices or ordinary equipment
Product reliability
● Low power design, natural heat dissipation, ensure the stable operation of the product.
● High redundancy design, providing long-term stable Poe power output.
● The working temperature of 0 ~ 45 ℃ improves the stability of the product in wide temperature environment
Ease of use
● Plug and play, no configuration, simple and convenient.
● Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act) display.
