Product Description

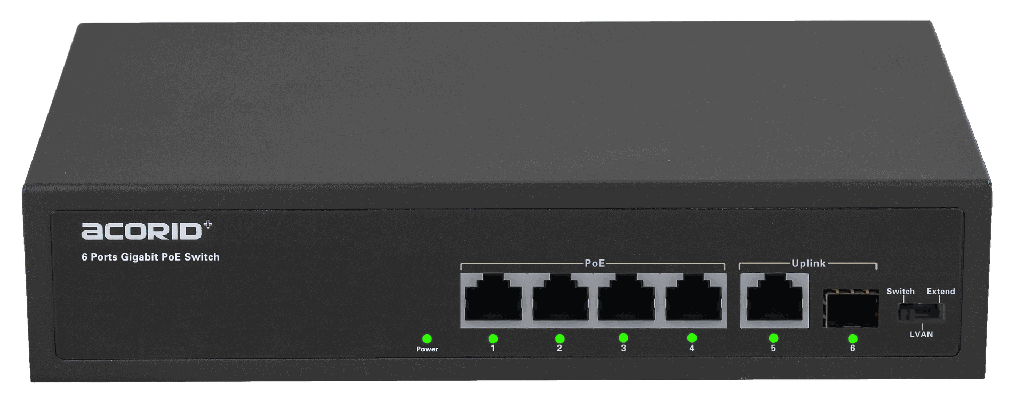

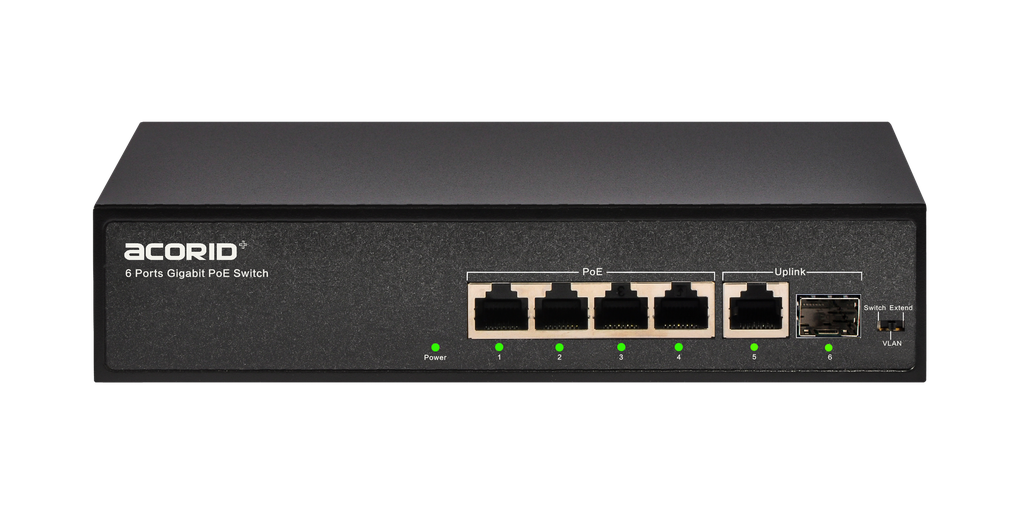

The GLS1106PTF is a 4-port Gigabit PoE switch developed by ACOIRID, providing 4*10/100/1000M adaptive RJ45 ports, 1*1000M RJ45 Uplink port, 1*1000M SFP fiber interface, and each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. The downlink ports all support IEEE802.3af/at standard PoE power supply function, which can automatically detect and identify the powered devices that meet the standard and supply power to them through the network cable.
The device is plug-and-play, no need to configure, simple and convenient to use. It can be used in security monitoring, hotels, campuses, factory dormitories and wireless coverage of small and medium-sized enterprise networking access layer.
Specifications
Downlink Ports 4*10/1000M RJ45 ports | Uplink ports 1*1000M RJ45 Uplink ports+1*1000M SFP fiber |
Total Power Supply 65W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 12Gbps |
Packet Forwarding Rate 8.92Mpps | MAC Address 4K |
Port lightning protection 6KV | Standard Protocol
IEEE 802.3at、IEEE 802.3af
|
Power Supply AC 100~240V 50/60HZ | Size 200mm × 133mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
