Product Description

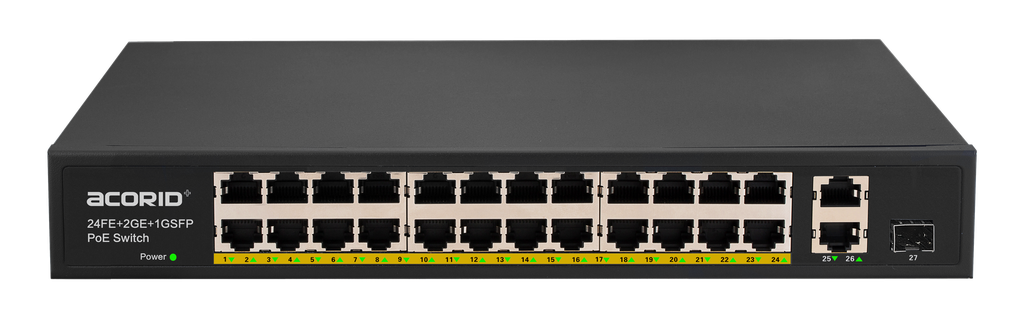

The CS1127PGF is a gigabit uplink 24-port 100M PoE switch developed by acorid Communications, providing 24*10/100M adaptive RJ45 ports, 2 Gigabit RJ45 Uplink ports + 1 Gigabit SFP fiber port. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. All downlink ports support PoE+ power supply, with single port PoE power up to 30W and maximum PoE output power of 250W. As a PoE powered device, it can automatically detect and identify the standard powered devices and supply power to them through the network cable.
The device is plug-and-play, no configuration, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
PoE ports 24*10/100M RJ45 | Switching Capacity 10.8G |
Uplink ports 2*1000M RJ45 +1*1000M SFP | Forwarding Rate 8.03Mpps |
PoE Standard Protocol IEEE 802.3af,IEEE 802.3at | MAC Address 4K |
Power Consumption 250w | Surge Protection 4KV |
PoE Budget 235w | Fans - |
Max. PoE Wattage per Port 30W | Product weight |
Input voltage AC 200-240V 50/60Hz | Product size（W x D x H） 270mm × 181mm × 44mm |
Output voltage 52V | Operating temperature 0℃～45℃ |
POE Pin 1/2/4/5(+),3/6/7/8(-) | Storage temperature - 40℃～70℃ |
Installation Desktop & rack installation |
Features
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
PoE Power Supply Capability
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)
