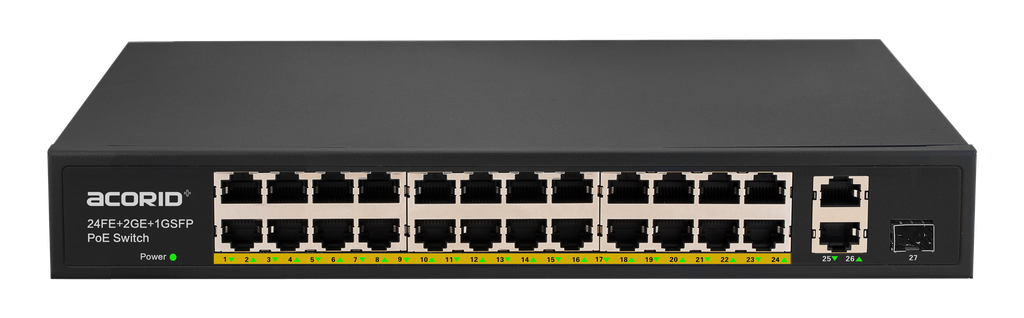

CS1127PGF
24*10/100M RJ45 Adaptive RJ45 port
2*1000M RJ45 +1*1000M SFP
Backplane Bandwidth：10.8Gbps
Packet Forwarding Rate：8.03Mpps
Support smart PoE power supply
Product Description
The CS1110PE is a self-developed 10-port 100Gb PoE switch that provides 10 10/100M adaptive RJ45 ports. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. It can automatically detect and identify the standard-compliant powered devices and supply power to them through the network cable.
The device is plug-and-play, no configuration required, easy and convenient to use. Can be used in security monitoring, hotels, campuses, factory dormitories and wireless coverage of small and medium-sized enterprise networking access layer.
Specifications
Downlink Ports 8*10/100M RJ45 ports | Uplink ports 2*100M RJ45 Uplink ports |
Total Power Supply 96W | LED Indicator PWR, Link / Act |
Transmission Mode half duplex flow control | Backplane Bandwidth 2Gbps |
Packet Forwarding Rate 1.488Mpps | MAC Address 4K |
Port lightning protection ≥6KV | Standard Protocol IEEE802.3i 10 BASE-T |
Power Supply AC 200~240V 50/60HZ | Size 200mm × 133mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
PoE Power Supply Capability
● Automatic detection and identification of standard PoE powered devices, intelligent power supply, will not burn non-standard PoE powered devices or ordinary devices
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act), and digital tube power display
Specifications
| Language | Chinese or English |
| Power Cable | International Standard or European Standard or British Standard |
| Version | V2.0 or V2.1 |
| Attributes | Labeled or Neutral |
