Product Description

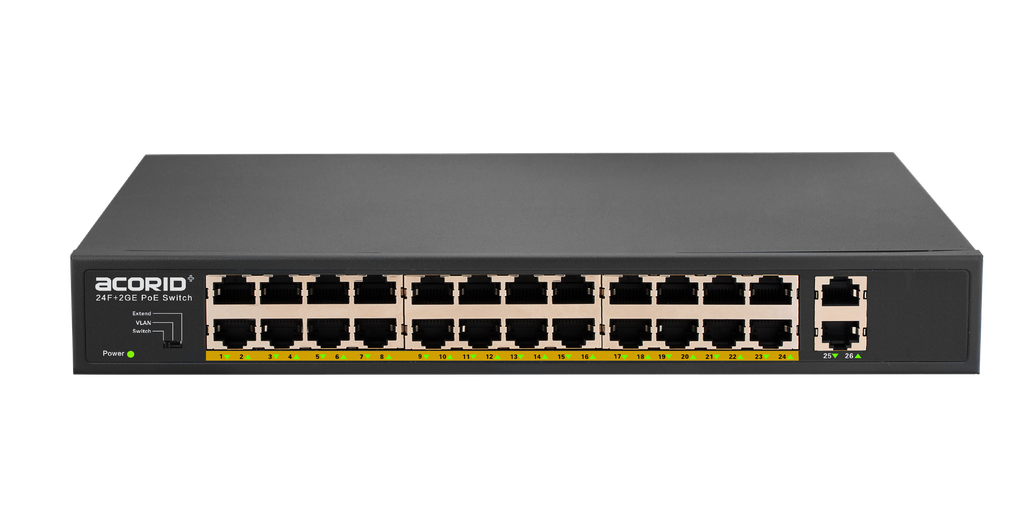

CS1126P is a gigabit uplink 24 port 100Mbps PoE switch independently developed by acorid Communication, providing 24 10/100M adaptive RJ45 ports and 2 gigabit RJ45 Uplink ports. Each RJ45 port supports MDI/MDIX automatic flipping and line speed forwarding functions. All downstream ports support PoE+power supply, with a single port PoE power of up to 30W, and the maximum PoE output power of the entire machine is 250W. As a PoE powered device, it can automatically detect and identify power receiving devices that meet the standards, and provide power to them through Ethernet cables.
This device is plug and play, requires no configuration, and is easy to use. It is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Downlink Ports 24*10/100M RJ45 ports | Uplink ports 2*1000M RJ45 Uplink ports |
Total Power Supply 250W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow | Backplane Bandwidth 8.8Gbps |
Packet Forwarding Rate 6.55Mpps | MAC Address 4K |
Port lightning protection 4KV | Standard Protocol IEEE802.3ab 1000 BASE-T |
Power Supply AC 200~240V 50/60HZ | Size 270mm ×181mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
