Product Description

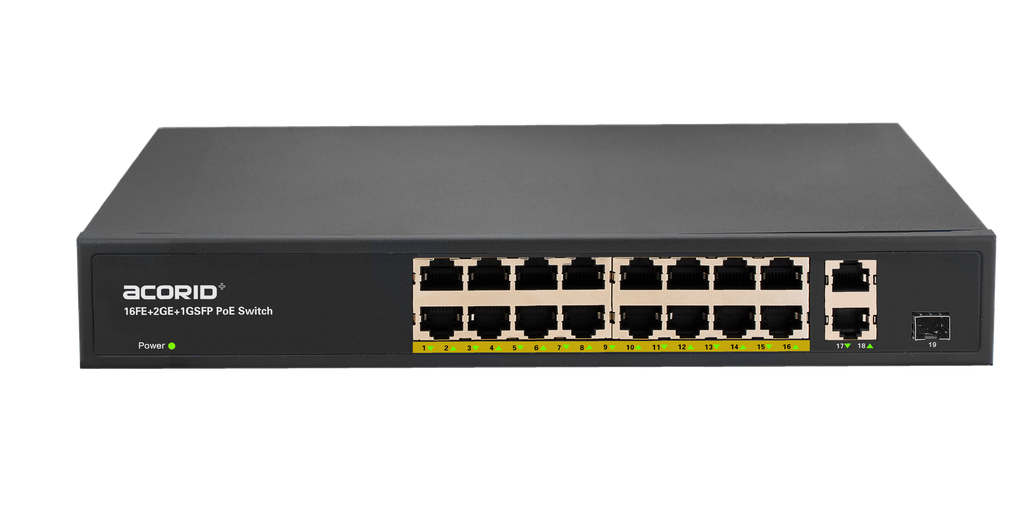

The CS1119PGF is a gigabit uplink 16-port 100G PoE switch developed by Techland Communications, providing 16*10/100M adaptive RJ45 ports, 2 Gigabit RJ45 Uplink ports + 1 Gigabit SFP fiber port. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. All downlink ports support PoE+ power supply, with single port PoE power up to 30W and maximum PoE output power of 150W. As a PoE powered device, it can automatically detect and identify the standard powered devices and supply power to them through the network cable.
The device is plug-and-play, no configuration, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Downlink Ports 16*10/100M RJ45 ports | Uplink ports 2*1000M RJ45 +1*1000M SFP |
Total Power Supply 150W | LED Indicator PWR, Link / Act |
Transmission Mode hIEEE802.3 full duplex flow | Backplane Bandwidth 2Gbps |
Packet Forwarding Rate 1.488Mpps | MAC Address 4K |
Port lightning protection ≥6KV | Standard Protocol IEEE802.3ab 1000 BASE-T |
Power Supply AC 200~240V 50/60HZ | Size 270mm ×181mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
