Product Description

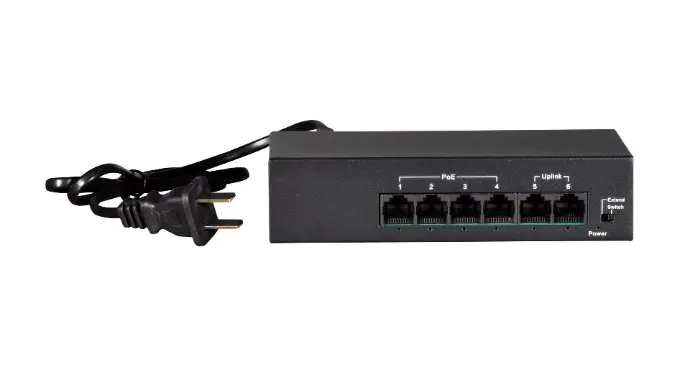

CS1106PM is a 6-port 100Mbps PoE switch independently developed by acorid Communication, providing 4 10/100M adaptive RJ45 ports and 2 100Mbps RJ45 Uplink ports. Each RJ45 port supports MDI/MDIX automatic flipping and line speed forwarding functions. All downstream ports support PoE+power supply, with a single port PoE power of up to 30W, and the maximum PoE output power of the entire machine is 53W. As a PoE powered device, it can automatically detect and identify power receiving devices that meet the standards, and provide power to them through Ethernet cables.
This device is plug and play, requires no configuration, and is easy to use. It is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Downlink Ports 8*10/100M RJ45 ports | Uplink ports 2*100M RJ45 Uplink ports |
Total Power Supply 53W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 1.2Gbps |
Packet Forwarding Rate 0.89Mpps | MAC Address 2K |
Port lightning protection 4KV | Standard Protocol
IEEE 802.3at、IEEE 802.3af
|
Power Supply AC 200~240V 50/60HZ | Size 152mm × 69.4mm × 36mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
