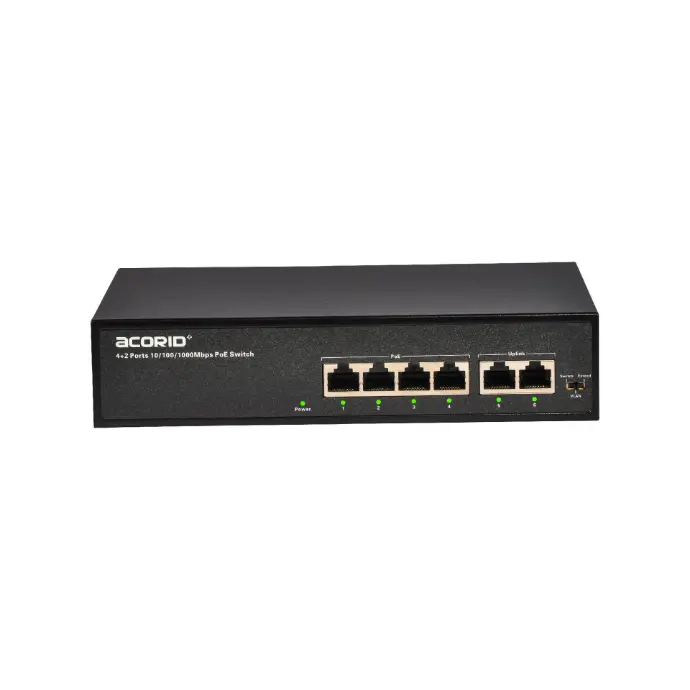

CGS1106P
4*10/100/1000M RJ45 Adaptive RJ45 port (PoE power supply)
2*1000M RJ45 Uplink Ports
Backplane Bandwidth：12Gbps
Packet Forwarding Rate：8.93Mpps
Support smart PoE power supply
Support one-key Switch, VLAN, Extend
Product Description
CGS1106P is an 4-port Gigabit PoE switch developed by ACORID, providing 4*10/100/1000M adaptive RJ45 ports and 2*1000M RJ45 Uplink ports. Each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding functions. All downlink ports support PoE+ power supply, with single port PoE power up to 30W and maximum PoE output power of 65W. As a PoE powered device, it can automatically detect and identify the standard powered devices and supply power to them through the network cable.The device is plug-and-play, no configuration, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Downlink Ports 4*10/100/1000M RJ45 ports | Uplink ports 2*1000M RJ45 Uplink ports |
Total Power Supply 65W | LED Indicator PWR, Link / Act |
Transmission Mode half duplex flow control | Backplane Bandwidth 12Gbps |
Packet Forwarding Rate 8.93Mpps | MAC Address 2K |
Port lightning protection 4KV | Standard Protocol IEEE802.3ab 1000 BASE-T |
Power Supply AC 100~240V 50/60HZ | Size 200mm × 133mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
● Large buffer design, high-definition video does not freeze
● Support IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow
● Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions
Operating Mode
● Provides three exchange modes.
● Standard mode: All ports can communicate freely after opening. Suitable for ordinary data transmission environment
● VLAN mode: After opening, all downstream ports cannot communicate with each other, which can isolate broadcast storms and prevent ARP viruses
● Extend mode: After opening, the rate of all downlink ports becomes 10M, and the transmission distance can reach 250m.
PoE Power Supply Capability
● The maximum output power of a single port can reach 30W
● SmartLink power management, StepLink step-by-step start function to escort the safe and stable operation of Kedi PoE switches;
Product Reliability
● The host has a low power consumption design and natural heat dissipation to ensure stable operation of the product.
● High redundancy design, providing long-term stable PoE power output.
● 0~45℃ working temperature improves product stability in a wide temperature environment
Easy To Use
● Plug and play, no need to configure, simple and convenient
● Users can easily understand the working status of the equipment through the power indicator (Power), port status indicator (Link/Act)Specifications
| Language | Chinese or English |
| Power Cable | International Standard or European Standard or British Standard or American Standard |
| Attributes | Labeled or Neutral |
