Product Description

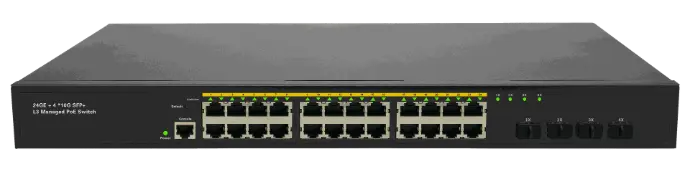

The LS61100G-24P-4X-L3M managed switch is a 10-Gigabit uplink 24-port PoE switch independently developed by ACORID. It adopts a new generation of high-performance hardware and software platform to provide flexible and cost-effective full Gigabit access and uplink ports. Support complete security protection mechanism, perfect ACL/QoS strategy and flexible VLAN function, easy to manage and maintain, meet the user's requirements for easy management of network equipment, high security, low cost networking, suitable for campus, hotel and enterprise campus network Access and converge multiple application scenarios.
Specifications

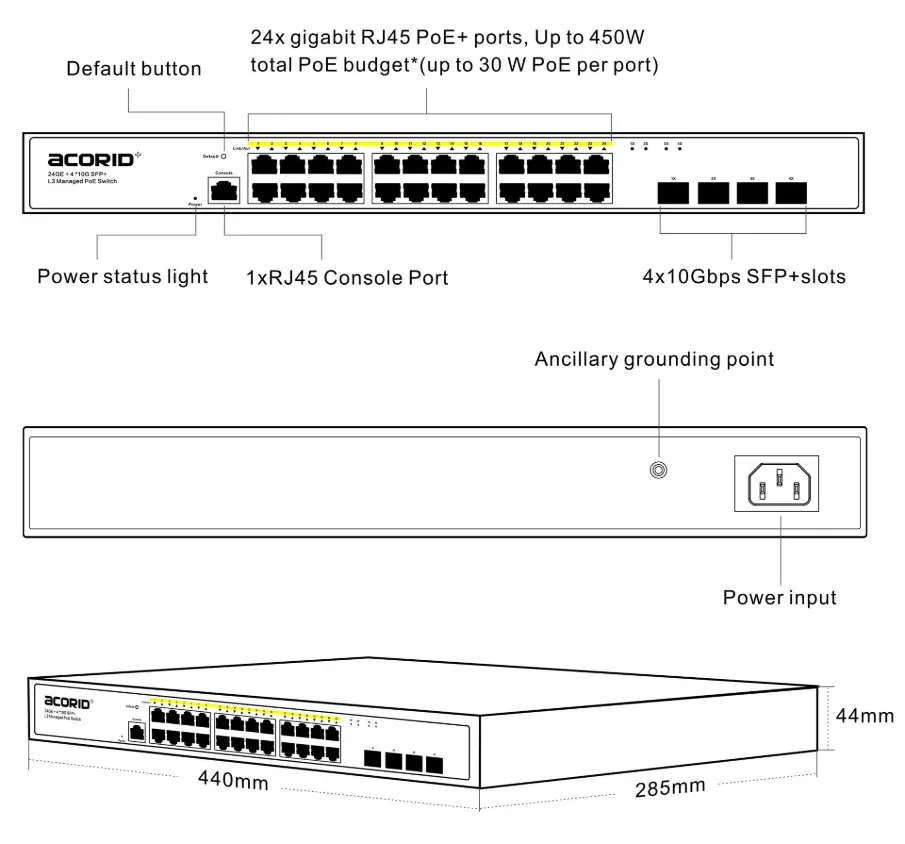

Downlink Ports 24*10/100/1000M RJ45 ports | Uplink ports 4*10G SFP+ |
Total Power Supply 450W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 128Gbps |
Packet Forwarding Rate 95.23Mpps | MAC Address 16K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 440mm × 285mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
