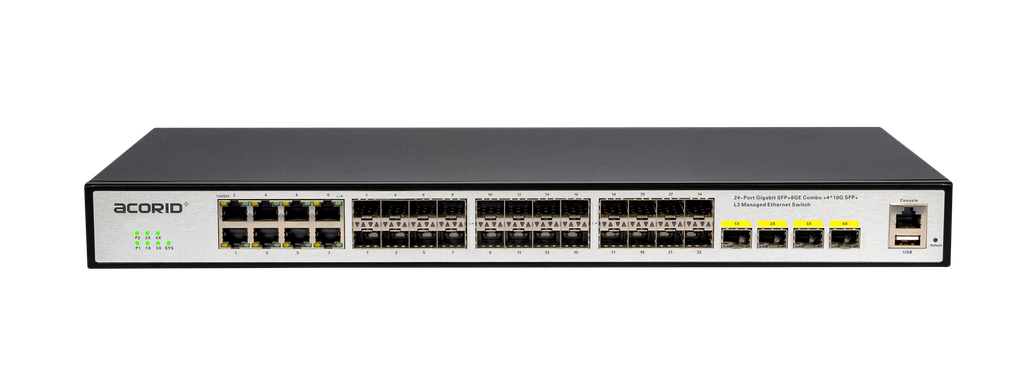

LS6100G-24F8T4X-L3M-AC
*8*1000M Combo ports (8*10/100/1000M adaptive RJ45 ports, 8*1000M SFP optical ports) + 16 independent Gigabit SFP optical ports
*4*10G SFP+
* Backplane Bandwidth：368Gbps
* Packet Forwarding Rate：95.23Mpps
* 3-layer network management function
Product Description
LS6100G-24F8T4X-L3M 10-Gigabit uplink 24-port all-optical managed switch is a convergent switch independently developed by ACORID. It adopts a new generation of high-performance hardware and software platform to provide flexible all-gigabit access and high-speed Cost-effective 10 Gigabit uplink ports, supporting Layer 3 routing protocols, complete security protection mechanisms, complete ACL/QoS strategies and rich VLAN functions, easy to manage and maintain, and suitable for the core or aggregation layer of medium and large networks such as enterprises and campuses.
Specifications
Downlink Ports 8*1000M Combo ports (8*10/100/1000M RJ45 ports, 8*1000M SFP optical ports) 16 independent Gigabit SFP optical ports | Uplink ports 4*10G SFP+ |
Total Power Supply | LED Indicator P1, P2 PWR, Link / Act, SYS |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 128Gbps |
Packet Forwarding Rate 95.23Mpps | MAC Address 16K |
Port lightning protection 6KV | Standard Protocol IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3ae 10GBase |
Power Supply AC 100~240V 50/60HZ | Size 440mm × 220mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
Product performance
Stacking Capabilities
l Support Stacking of 8 units through a single IP address
l Support Unified management
l Support Redundancy mechanism
l Support High speed interconnect
Equipment Stability
l Support IPv4/IPv6 dual protocol stack platform based on Linux operating system
l Support multiple link redundancy and network redundancy protocols such as STP / RSTP / MSTP / ERPS / LACP
QoS Capabilities
l Support port speed and flow speed limit function
l Support classification based on service flow and Qos flow control function
l Support queue scheduling algorithms such as SP/WRR/SP+WRR
l Support port-based and service flow-based mirroring functions
Multi-service Capabilities
l Support DHCP Server and DHCP Relay
l Support L2-Tunnel
l Support Ethernet OAM protocol such as CFM / EFM
Routing Protocol
l Support static route
l Support dynamic route such as RIP / OSPF / BGP / ISIS
l Support IPV4/IPV6 dual protocol stack
l Support RIPng / OSPFv3
Safety Mechanism
l Support ACL security filtering mechanism, which can provide security control based on MAC, IP, L4 port
l Support ARP attack automatic protection
l Support DHCP attack automatic protection based on MAC Address
l Support DHCP snooping / IP-source-Guard / 802.1X and other security features
l Support link protection functions such as BFD, Flex Link, LACP and ERRP
l Support remote loop detection function
l Support CFM、EFM
l Support remote user authentication based on TACACS+, Radius, and Local user authentication
Network Management Function
l Support CLI based on RS232 serial port, Telnet and SSHv2
l Support WEB-based configure operation management, support SNMP V1/V2/V3
Support remote upgrade or equipment through FTP and TFTPSpecifications
| Language | Chinese or English |
| Power Cable | South African Standard or Indian Standard or Korean Standard or International Standard or European Standard or British Standard or American Standard |
| Attributes | Labeled or Neutral or OEM |
| Version | V1.0 or V2.0 |
