Product Description

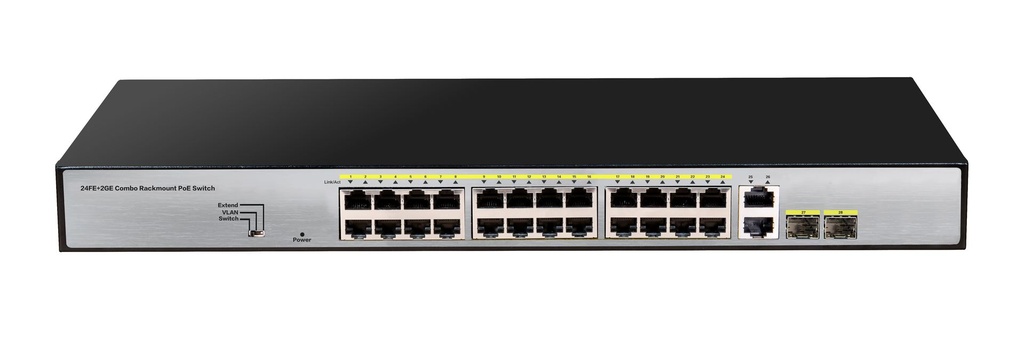

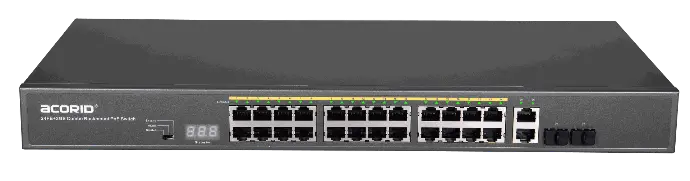

LS5328PC is a 24-port 100M PoE switch independently developed, providing 24*10 / 100M adaptive RJ45 ports, 2 Gigabit RJ45 + 2 Gigabit SFP (Combo). Each RJ45 port supports MDI / MDIX automatic flipping and linear speed forwarding. Both the downstream port support the POE power supply function of the IEEE802.3AF / AT standard, which can automatically detect the identifier of standard power-on, and power it through the network cable. Preventive dosage overload, device plug and play, no need to configure, easy to use. It can be used in security monitoring, hotel, campus, plant dormitory and wireless covering small and medium enterprise network access layers.
Specifications
Downlink Ports 24*10/100M RJ45 ports | Uplink ports 2*1000M RJ45 +2*1000M SFP（Combo) |
Total Power Supply 250W/400W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 8.8Gbps |
Packet Forwarding Rate 6.55Mpps | MAC Address 8K |
Port lightning protection ≥6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 440mm ×220mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
