Product Description

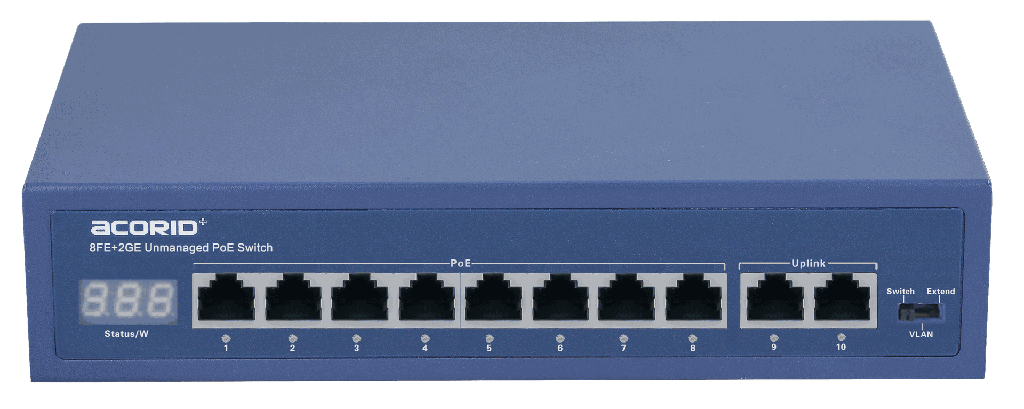

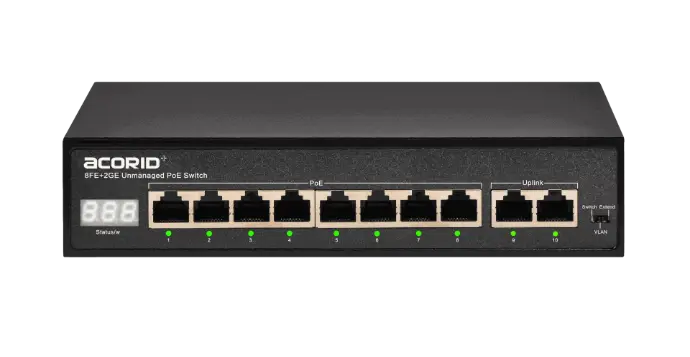

LS5310PG is a 10-port Gigabit uplink digital display PoE switch independently developed by ACORID. It provides 8*10/100M adaptive RJ45 ports and 2*1000M RJ45 uplink ports. Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. The downstream ports all support the IEEE802.3af/at standard PoE power supply function, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
The device supports digital display of power to prevent overload of usage. The device is plug and play, no configuration is required, and it is simple and convenient to use. It can be used in the access layer of security monitoring, hotels, campuses, factory dormitories and wireless coverage of small and medium-sized enterprises.
Specifications
Downlink Ports 8*10/100M RJ45 ports | Uplink ports 2*100M RJ45 Uplink ports |
Total Power Supply 120W | LED Indicator Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 5.6Gbps |
Packet Forwarding Rate 4.17Mpps | MAC Address 4K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 100~240V 50/60HZ | Size 200mm × 133mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
