Product Description

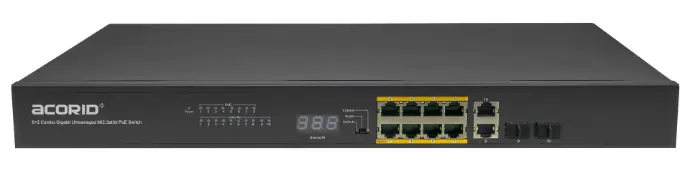

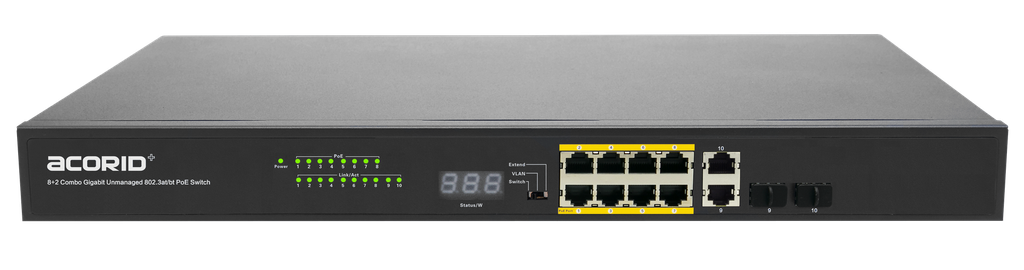

GLS1312BC is an 8-port Gigabit digital PoE switch independently developed by ACORID, which provides 8 10/100/1000M adaptive RJ45 ports. 2 Gigabit RJ45 ports + 2 Gigabit SFP fiber ports (Combo), each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. The downstream ports all support the IEEE802.3af/at standard PoE power supply function, can automatically detect and identify the power receiving equipment that meets the standard, and supply power to it through the network cable.
The device supports digital display of power to prevent overload of usage. The device is plug and play, no configuration is required, and it is simple and convenient to use. It can be used in the access layer of security monitoring, hotels, campuses, factory dormitories and wireless coverage of small and medium-sized enterprises.
Specifications
Downlink Ports 8*10/100/1000M RJ45 ports | Uplink ports 2*1000M RJ45 ports + 2*1000M SFP fiber ports (Combo) |
Total Power Supply 450W | LED Indicator Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 20Gbps |
Packet Forwarding Rate 14.88Mpps | MAC Address 8K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3bt |
Power Supply AC 100~240V 50/60HZ | Size 440mm × 285mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
