Product Description

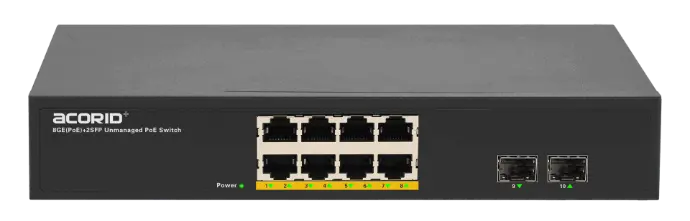

GLS1110PF is an 8-port Gigabit PoE switch developed by acorid , providing 8*10/100/1000M adaptive RJ45 ports. 2*1000M SFP fiber ports, each RJ45 port supports MDI/MDIX auto-flip and wire-speed forwarding function. The downlink ports all support IEEE802.3af/at standard PoE power supply function, which can automatically detect and identify the standard compliant powered devices and supply power to them through the network cable.
The device is plug-and-play, no configuration required, simple and convenient to use, and is the best choice for wireless coverage of security monitoring in hotels, campuses, factory dormitories, and small and medium-sized enterprises.
Specifications
Downlink Ports 8*10/100M RJ45 ports | Uplink ports 2*1000M SFP fiber ports |
Total Power Supply 120W/150W | LED Indicator PWR, Link / Act |
Transmission Mode IEEE802.3 full duplex flow control | Backplane Bandwidth 20Gbps |
Packet Forwarding Rate 14.88Mpps | MAC Address 4K |
Port lightning protection 6KV | Standard Protocol IEEE 802.3at、IEEE 802.3af |
Power Supply AC 200~240V 50/60HZ | Size 270mm × 181mm × 44mm |
Working Temperature 0℃～45℃ | Storage Temperature - 20℃～70℃ |
